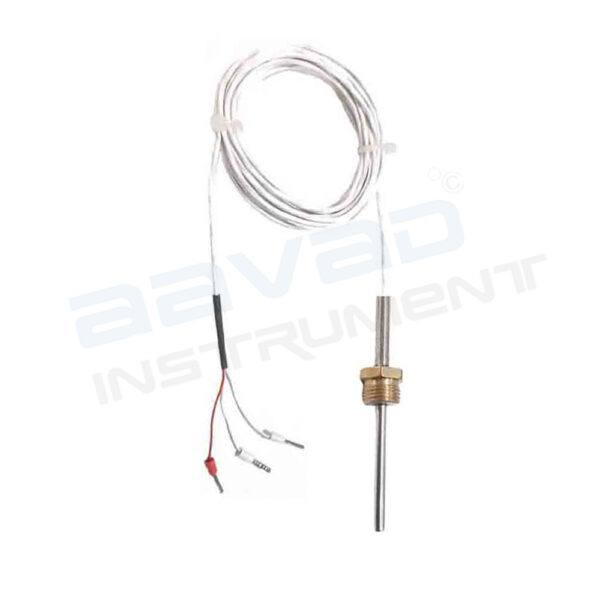

| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APES |
| Configuration | Simplex |
| No. of wire in simplex | 3 |
| Total no. of wires | 3 |
| Accuracy | Class B |
| Temperature range | -50 To 400 Degree C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO Insulation |
| Process connection size | 1/2 ” (M) Fix |
| Cable length | 2 Mtr |
| Cable type | TF/TF |
| Tip length | 75 mm |
| Sensor od | 6mm |
3-wire design for lead-wire resistance compensation
Improved accuracy over long distances
Rugged SS316 sheath for corrosion resistance
Compacted MgO insulation for high durability and fast response
Fixed 1/2″ (M) process connection for easy installation
Suitable for –50°C to 400°C temperature applications
Supplied with 2-meter TF/TF cable
Industrial temperature monitoring from –50°C to 400°C
Process piping and equipment temperature measurement
HVAC and building automation systems
Chemical and pharmaceutical process control
Food & beverage processing equipment
Water treatment plants and boiler systems
General-purpose industrial machinery
OEM equipment requiring accurate RTD sensing
