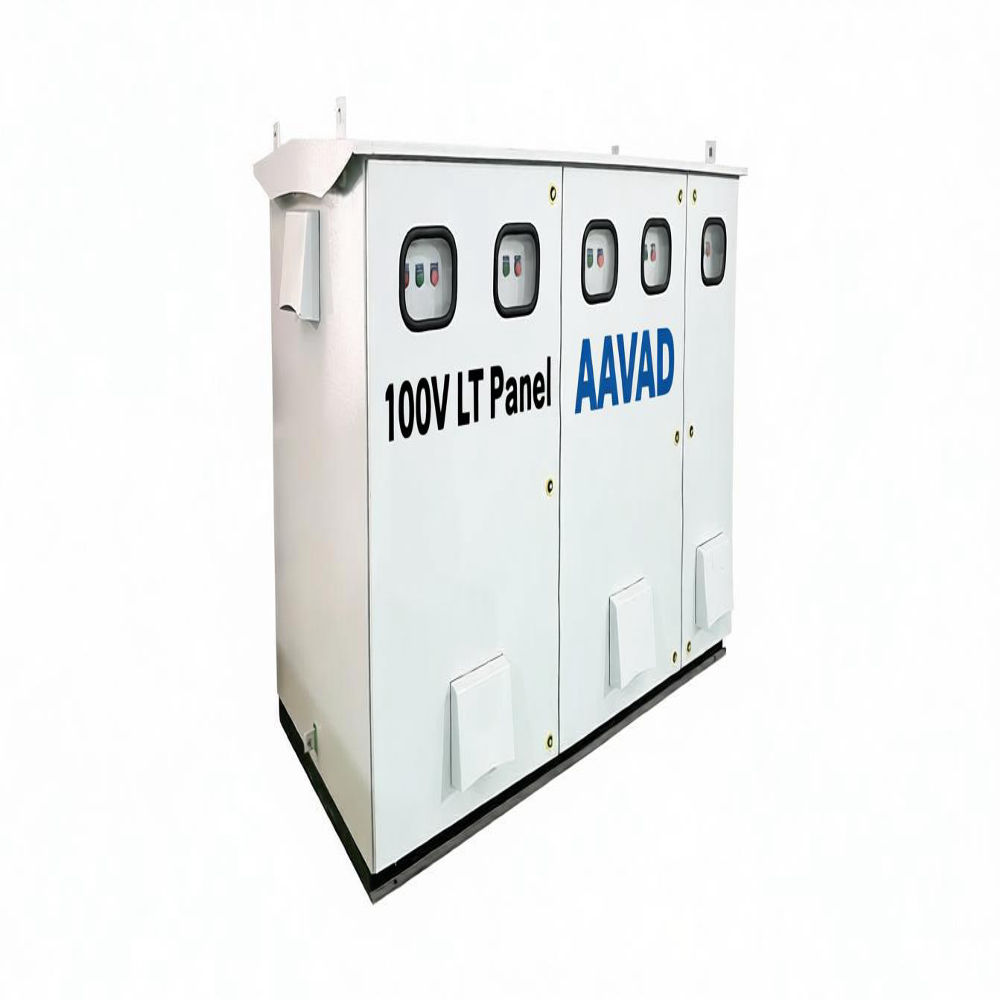

Overview of 800V LT Panel
High-Voltage Low Tension Panels for MW-Scale Solar Power Plants
An 800V LT Panel is an advanced low-voltage switchgear assembly rated for 800V AC, designed to support modern high-voltage solar inverter architectures. These panels play a critical role in collecting, protecting, metering, and distributing AC power generated by string inverters before feeding it to step-up transformers or grid interfaces.
AAVAD Instrument Pvt. Ltd. manufactures CPRI-approved 800V LT Panels and Solar ACDB solutions engineered for high reliability, reduced losses, and long-term performance in utility-scale solar power plants.
Why 800V LT Panels Are Important in Modern Solar Plants
With the industry shift towards 1500V DC string inverter systems, AC side voltages have increased to optimize efficiency. 800V AC architectures help solar plants achieve:
Reduced transmission losses
Lower cable sizes and wiring complexity
Fewer DC combiner boxes
Improved plant availability and uptime
Lower BOS (Balance of System) costs
Operating at higher AC voltage significantly improves overall system efficiency while maintaining safety and compliance.

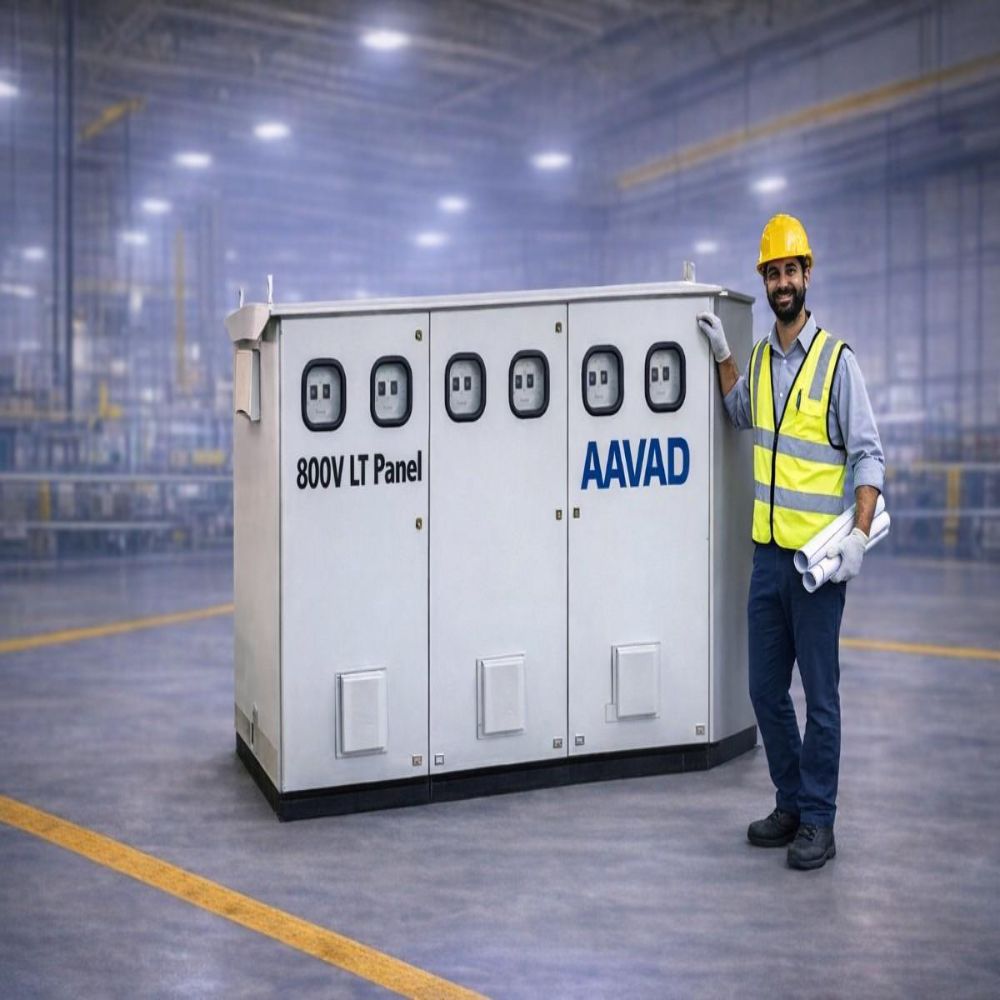

What Are 800V LT Panels?
At their core, 800V LT Panels are robust electrical distribution panels that:
Aggregate AC output from multiple string inverters
Safely route power to step-up transformers
Provide fault isolation and protection
Enable energy metering and SCADA integration
Their higher voltage handling capability makes them ideal for large solar farms and MW-scale renewable projects.
- Description
- Technical Specifications
- Design & Construction Excellence
- Compliance & Standards
- Applications
- Key Advantages
- 2D Drawing
Technical Specifications
| Feature | Specification |
|---|---|
| Voltage Rating | 800V AC, 50Hz, 3-wire system |
| Application Use | AC power collection, fault isolation, energy metering |
| Enclosure Material | CRCA steel (2mm frame, 1.6mm partitions, 3mm supports) |
| Ingress Protection | IP52 (Indoor), IP55 / IP65 (Outdoor) |
| Height Compliance | ≤2400mm overall, top switch ≤1750mm from floor |
| Gland Plate | 5mm aluminium / stainless steel, modular & gasketed |
| Base Frame | 75 / 100mm structural steel channels |
| Finish & Paint | RAL7035, C5-grade coating with 9-tank anti-corrosion process |
Design & Construction Excellence
Heavy-duty CRCA steel enclosures
Optimized ventilation for thermal management
Outdoor-ready IP65 construction
Modular internal architecture
Designed to minimize heat rise and ensure safe operation
Tested for continuous operation in harsh solar environments
Compliance & Standards
AAVAD 800V LT Panels are designed and manufactured in compliance with:
IEC 61439 – LV switchgear assemblies
CPRI approval for solar applications
IS 8623
IEC 60529 (IP protection)
This ensures global acceptance, safety, and long-term reliability.
Applications
MW-scale solar power plants
Utility-scale renewable energy projects
High-capacity string inverter systems
Solar AC power collection systems
Grid-connected solar installations
Key Advantages
Reduced power losses and downtime
Improved system efficiency and scalability
Lower wiring and installation costs
Robust fault isolation and protection
SCADA-ready for remote monitoring
Proven performance in large solar farms
