Description
- Used to protect temperature sensors installed in industrial processes. Thermowell consists of a tube closed at one end and mounted in the processing system.

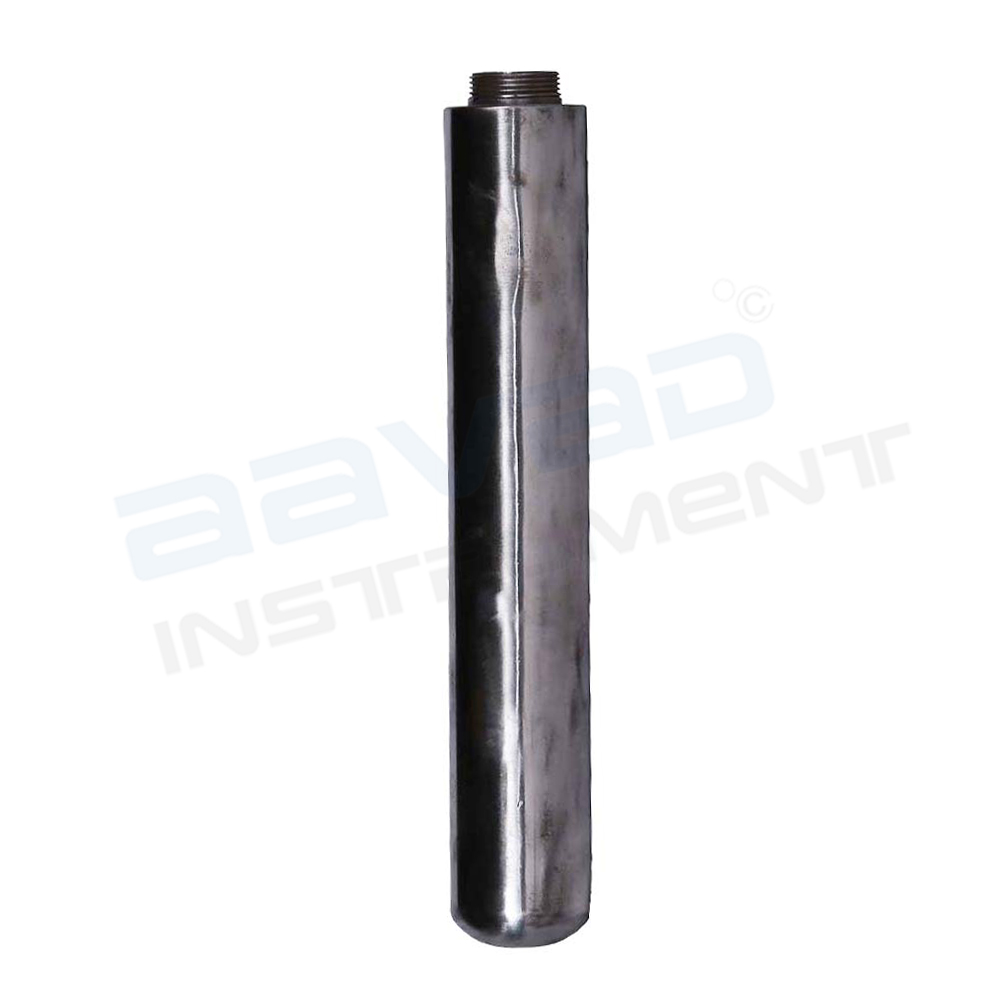

Casting Thermowell
Casting Thermowell
Ci Thermowell
| Parameter | Specification |
|---|---|
| Od | 40 mm |
| Id | 18 mm |
| Length | 315 mm |
| Process Connection | ¾” Bsp (M) |
Key Features
Protects sensors from pressure, flow velocity, corrosion, and vibration
Closed-end tube prevents direct contact with the process media
Allows sensor removal or replacement without process shutdown
Extends sensor life and improves measurement reliability
High mechanical strength (often solid bar stock)
Available in threaded, flanged, or weld-in mounting styles
Compatible with RTDs and thermocouples
Manufactured in materials like SS304, SS316, Inconel, Hastelloy
Applications
Chemical and petrochemical processing
Oil & gas refineries
Power plants and boilers
Steam, gas, and liquid pipelines
Reactors, vessels, and heat exchangers
High-pressure and high-temperature processes
Corrosive and vibration-prone environments
