Description
Digital water flow meter with latest CGWA guidelines Real-time data to CGWA. The un-tampered data from the secure cloud shall be sent to Central Ground Water Authority (CGWA). Contact us

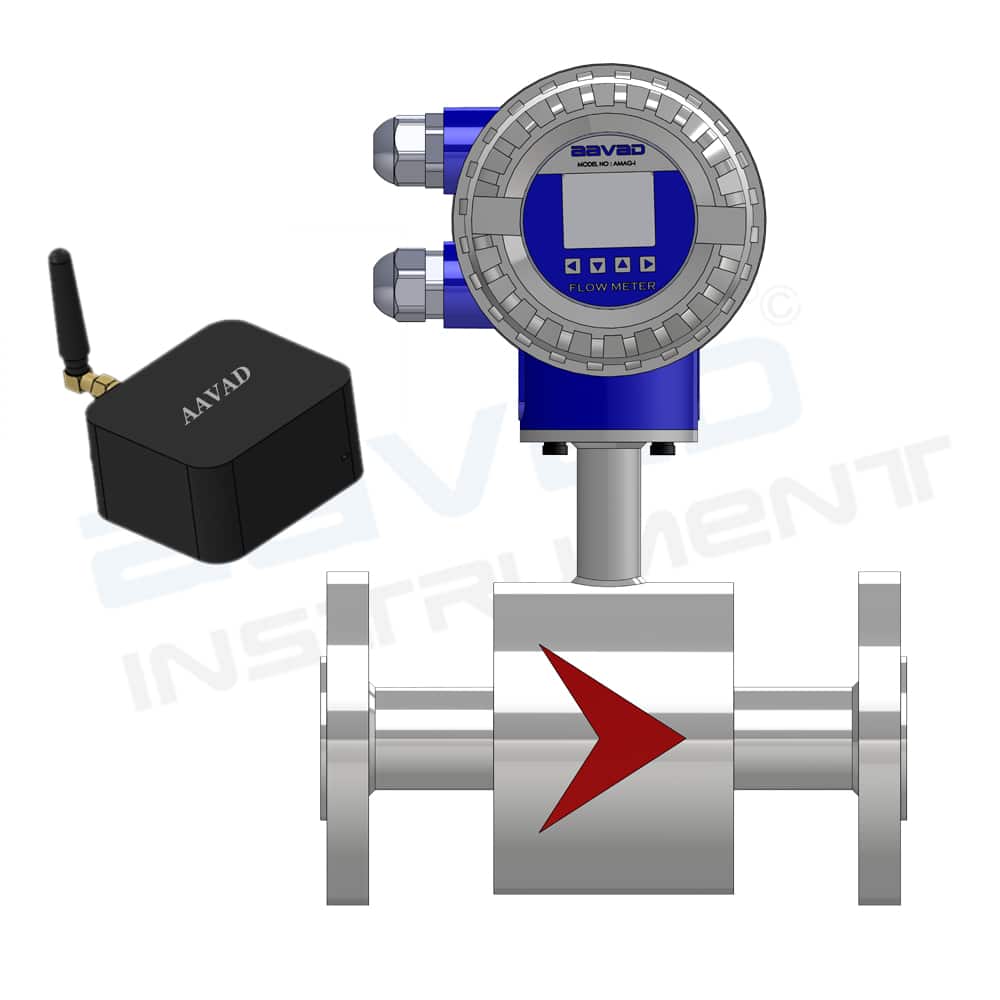

Digital Water Flow Meter with Latest CGWA Guidelines
Digital Water Flow Meter with Latest CGWA Guidelines
| Parameter | Specification |
|---|---|
| Make | Aavad |
| Model | AMAG – I |
| Service | Water |
| Conductivity | ≥ 10 µs/Cm |
| Output | 4 ‐ 20mA Isolated, RS – 485, Pulse |
| Display | LCD 16×4 Line 9 Digit Totalized Flow |
| Accuracy | + / ‐ 0.5 % Of Reading |
| Repeatability | + /‐ 1% |
| Process Temperature | 0°C ‐ 150°C |
| Process Pressure | Max: 10 Kg/Cm2 |
| Power Supply | 230V AC |
| Response Time | 0.3 Sec |
| Process Connection | ASA 150 Flanged MS |
| Operating Temperature | 55°C |
| Electronics Housing | Die Cast Aluminium, IP68 |
| Empty Pipe Detection | Yes |
| Back Light Lcd | Yes |
| Velocity | 0.3 To 10 M/S |
| Measuring Unit | Selectable Kg/H,M3/H,L/H,L/M,L/S, Kg/M, Kg/S |
| Lining | PTFE |
| Electrode MOC | SS 316L |
| Line Size | As Per Your Requirement |
| With NABL Accredited Calibration Certificate & 1 Year Warranty Certificate | *Telemetry IOT Device* |
| RS 485 Based Features | 1) User Specific Logins |
| 2) Real-Time Monitoring | 3) Historical Data Downloading |
| 4) SMS/Email Notification (For 3 Users) Included | 5) 1 Year Website Subscription Included |
| 6) M2M 4G Sim card With 1-Year Subscription Included | 7) With SMC Panel Box |
Key Features
CGWA-compliant digital water flow metering solution
Real-time data transmission to CGWA from secure cloud
Un-tampered data integrity with secure IoT architecture
Integrated Telemetry System (IoT-enabled)
Cloud-based platform accessible from any remote location
Real-Time Dashboard displaying all CGWA-required analytical parameters
Email & SMS alerts/notifications on parameter exceedance
Easy installation and user-friendly operation
Supports RS-485 / 4–20 mA / Pulse outputs
Empty pipe detection for accurate measurement
Data logging & historical data download
Multi-user login access
Low maintenance and long-term reliability
Applications
Borewell & groundwater monitoring (CGWA compliance)
Industrial water usage monitoring
Sewage Treatment Plants (STP)
Effluent Treatment Plants (ETP)
Water supply schemes
Industrial utility management
Sugar industries & distilleries
Automobile industries
Chemical industries
Food & beverage industries (Dairy, Wineries)
Boiler feed water measurement
Infrastructure & commercial projects
