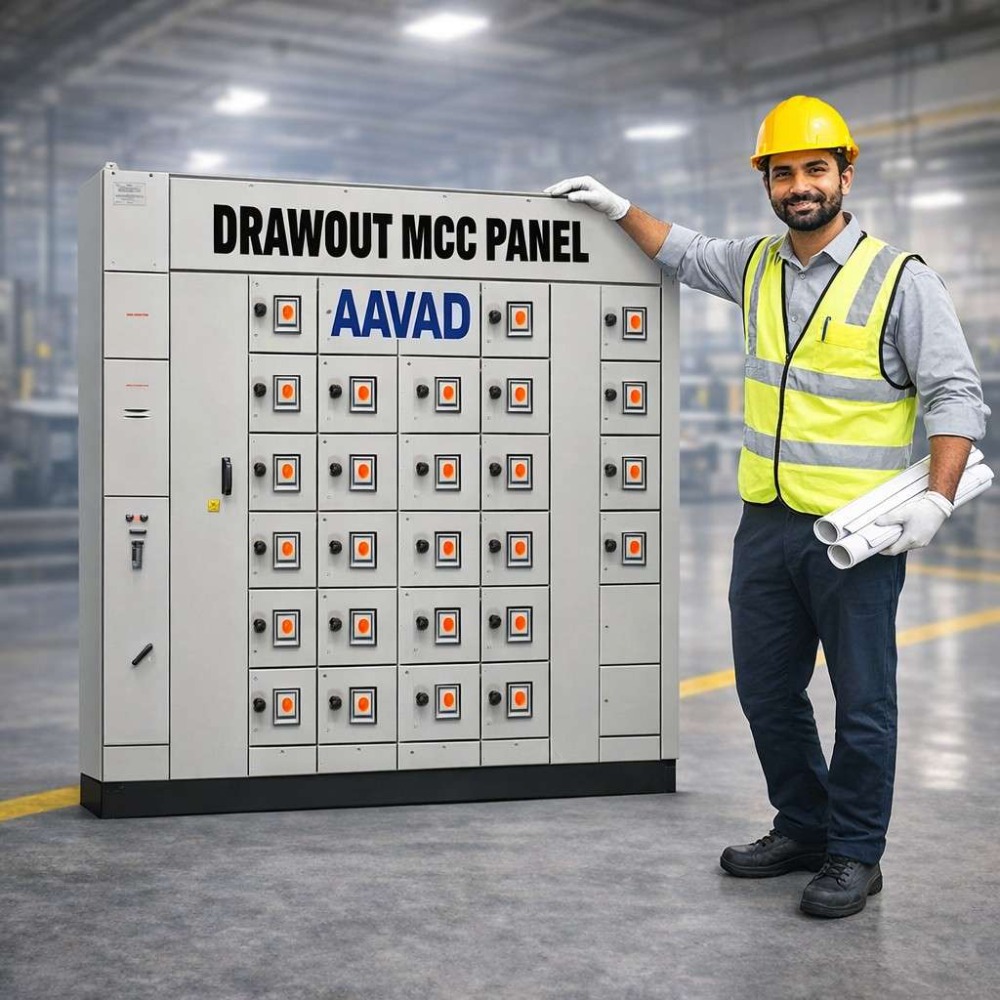

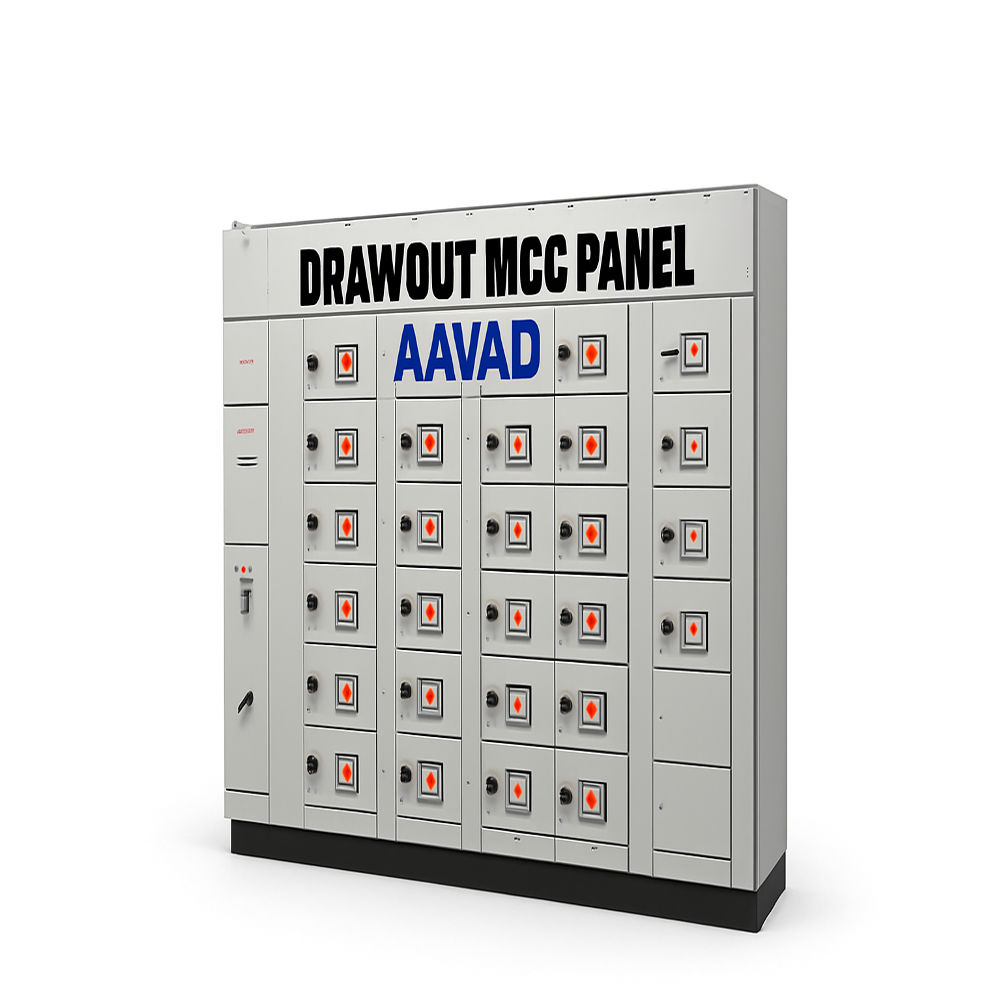

Overview of Drawout MCC Panel

Safe, Flexible & High-Performance Motor Control Solutions

A Drawout MCC (Motor Control Center) Panel is an advanced motor control system designed to provide safe, flexible, and reliable control of electric motors in industrial power distribution networks. Unlike fixed MCC panels, drawout MCC panels allow individual motor feeders to be easily withdrawn, replaced, or maintained without shutting down the entire system.

AAVAD Instrument Pvt. Ltd. manufactures high-quality Drawout MCC Panels known for excellent fabrication, durability, and compliance with international electrical standards.

What is a Drawout MCC Panel?

A Drawout MCC Panel consists of withdrawable feeder modules mounted in a compartmentalized structure. Each feeder can be safely isolated and removed for inspection or maintenance, ensuring minimum downtime and maximum operational safety.

These panels are widely used in industries where continuous process operation and high system availability are critical.

Introduction to AAVAD Drawout MCC Panels

AAVAD Drawout MCC Panels are assembled as per strict industrial quality and regulatory norms. Being a quality-centric organization, AAVAD delivers MCC panels that combine robust construction, reliable performance, and cost-effective solutions suited to modern industrial requirements.

Why Choose AAVAD Drawout MCC Panels?

  • Flexible drawout feeder design

  • Reduced downtime during maintenance

  • High level of operator safety

  • Robust construction and long service life

  • Compliance with international electrical standards

  • Custom-engineered solutions for specific applications

  • Trusted manufacturing expertise of AAVAD Instrument Pvt. Ltd.

Description

AAVAD INSTRUMENT PVT.LTD.  Drawout MCC Panels offer safe, flexible, and efficient motor control with withdrawable feeders for easy maintenance and uninterrupted operations.

Key Features

  • Firstly: Safe – Fully compartmentalized and interlocked design

  • Secondly: Durable – Heavy-duty construction for long service life

  • Thirdly: High Performance – Reliable motor control under continuous operation

  • Sturdy and rigid panel construction

  • Excellent corrosion resistance

  • Easy maintenance with drawout mechanism

  • Enhanced operator safety

Specifications & Standards

Standards Compliance

All switches, circuit breakers, and connectors used in AAVAD Drawout MCC Panels conform to:

  • IEC 60947 Part I, II & III

  • IS 60947 Part I, II & III

  • IS 8623

  • IEC 60529

These standards ensure electrical safety, operational reliability, and global acceptance.

Construction & Design

  • Metal-clad, totally enclosed panel

  • Rigid, floor-mounted, air-insulated cubicle type

  • Suitable for three-phase / single-phase, 415V / 230V, 50Hz systems

  • Modular drawout feeders for easy replacement

  • Designed for operation in dusty and industrial environments

Applications

AAVAD Drawout MCC Panels are widely used in:

  • Manufacturing plants

  • Process industries

  • Power generation facilities

  • Chemical and petrochemical plants

  • Water & wastewater treatment plants

  • Cement, steel, and mining industries

  • Infrastructure and utility projects

These panels are ideal where process continuity, safety, and fast maintenance are essential.
