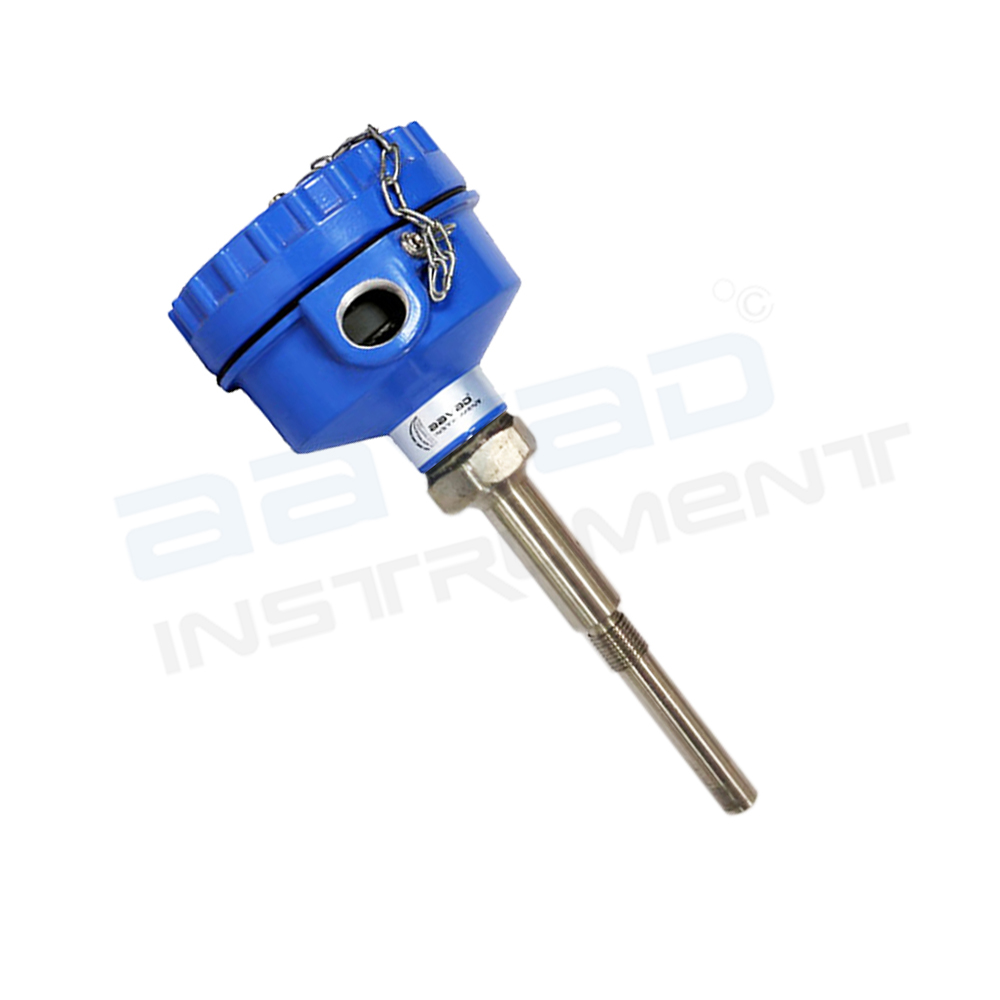

Flameproof RTD Sensor

Flameproof RTD Sensor

B Type Thermocouple With NABL Calibration CertificateUniversal Data Scanner
Category:

RTD PT-100 Sensor

Type: PT-100

Make: Aavad

Model: APFD

Configuration: Duplex

No. of wire in simplex: 3

Total no. of wires: 3+3

Accuracy: Class A

Temperature range: -50 To 400°C

Material of construction: SS 316

Insulation: Compacted mgo insulation

Protection head: Die-cast aluminum flameproof head with threaded cap & chain

Head protection class: Ip-67

Head cable entry connection: 1/2 ” Npt

No. of cable entry: Double

Terminal block: Nickel-plated ceramic terminal block

Above thread od: 12 mm

Length: 45 mm

Tip od: 8 mm

Tip length with thread: 45 mm

Description

  • Flameproof and explosion proof RTD sensors are made of robust die cast aluminum head with mineral insulation. They can also be made of cast-iron, SS304 and SS316. Our standard RTD sensors are certified flameproof for gas groups l, llA and llB. An assembly certified for gas group IIC (Hydrogen) can also be constructed.

APFD_45X45
