Description
L-Type thermocouple fitted with a spring-loaded rotating bayonet mounting.Designed for secure, quick, and adjustable installation.Spring pressure ensures constant contact with the measurement surface

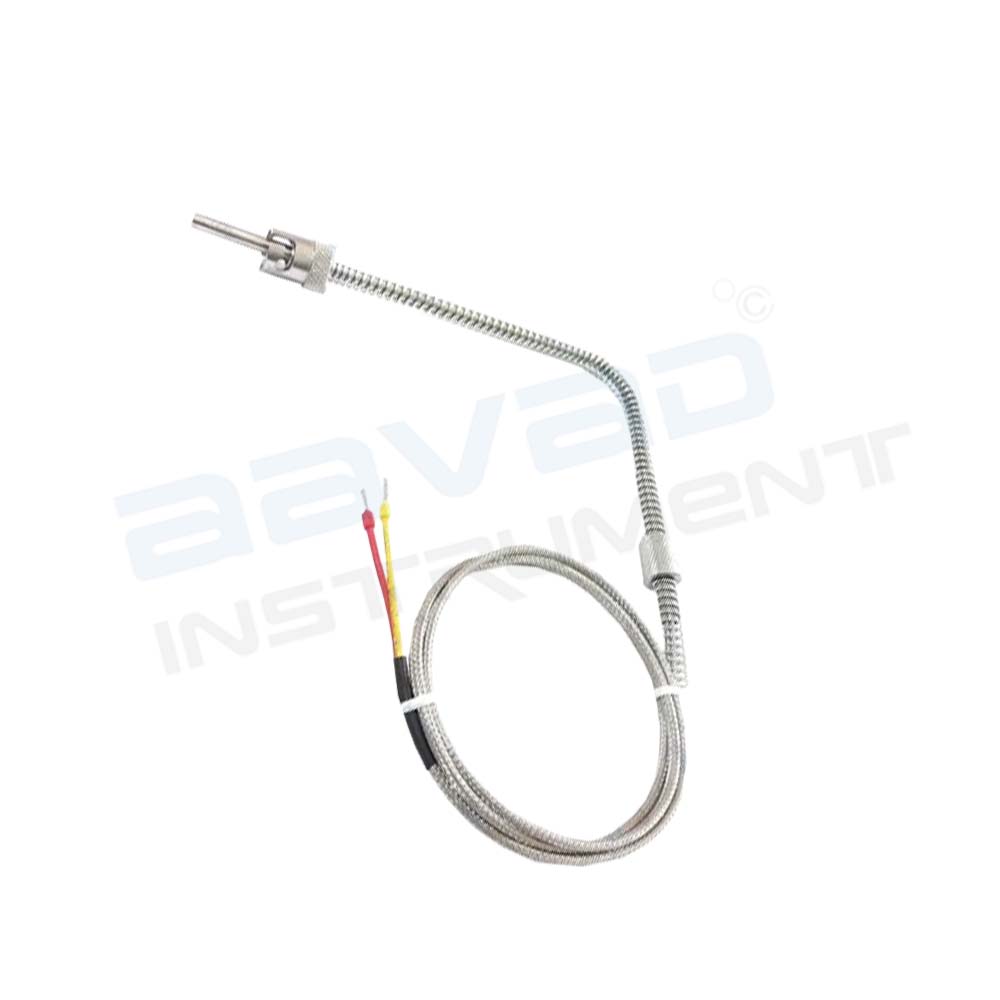

L Type Spring Rotate Thermocouple
L Type Spring Rotate Thermocouple
| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKES |
| Configuration | Simplex |
| Temperature range | 0 To 400°C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Cable length | 2 Meters |
| Cable type | Fiberglass/Fiberglass/SS |
| Assembly | Rotating Bayonet |
| Tip Length | 65mm |
| Tip od | 6mm |
| Bayonet cap | 1 Pin locking, od 15.5 mm |
Key Features
Spring-loaded bayonet (rotate-lock) mounting system
Maintains consistent contact pressure for accurate readings
Adjustable immersion length for precise positioning
Fast response to temperature changes
High reliability in vibration-prone environments
Easy installation and replacement, reducing downtime
Robust construction for industrial use
Compatible with standard temperature controllers
Cost-effective solution for continuous monitoring
Applications
Plastic injection molding machines
Extrusion and hot runner systems
Nozzle and barrel temperature measurement
Die casting machinery
Packaging and polymer processing equipment
Industrial heaters and process equipment
OEM machinery and retrofit applications
Processes requiring frequent sensor replacement
