What is a Power Distribution Board (PDB Panel)?

A Power Distribution Board (PDB Panel) is a key component of an electrical system used to distribute electrical power from a main supply to multiple subsidiary circuits. It distributes power through circuit breakers, switch-fuse units, and protective devices, ensuring safe and controlled electrical distribution.

AAVAD Instrument Pvt. Ltd. manufactures high-quality PDB Panels that are designed to deliver efficient power distribution with enhanced safety, reliability, and ease of operation in residential, commercial, and industrial environments.

What Does AAVAD Offer in PDB Panels?

AAVAD Power Distribution Boards undergo advanced surface pretreatment processes, including degreasing, water rinsing, de-rusting, phosphating, and painting using a seven-tank powder coating process. This ensures excellent corrosion resistance and long service life.

The panels are equipped with:

• Required numbers of circuit breakers and switch-fuse units

• High-quality busbars with uniform cross-sections

• Reliable internal wiring supported by SMC and DMC bases

• Durable powder-coated finish as per customer specifications

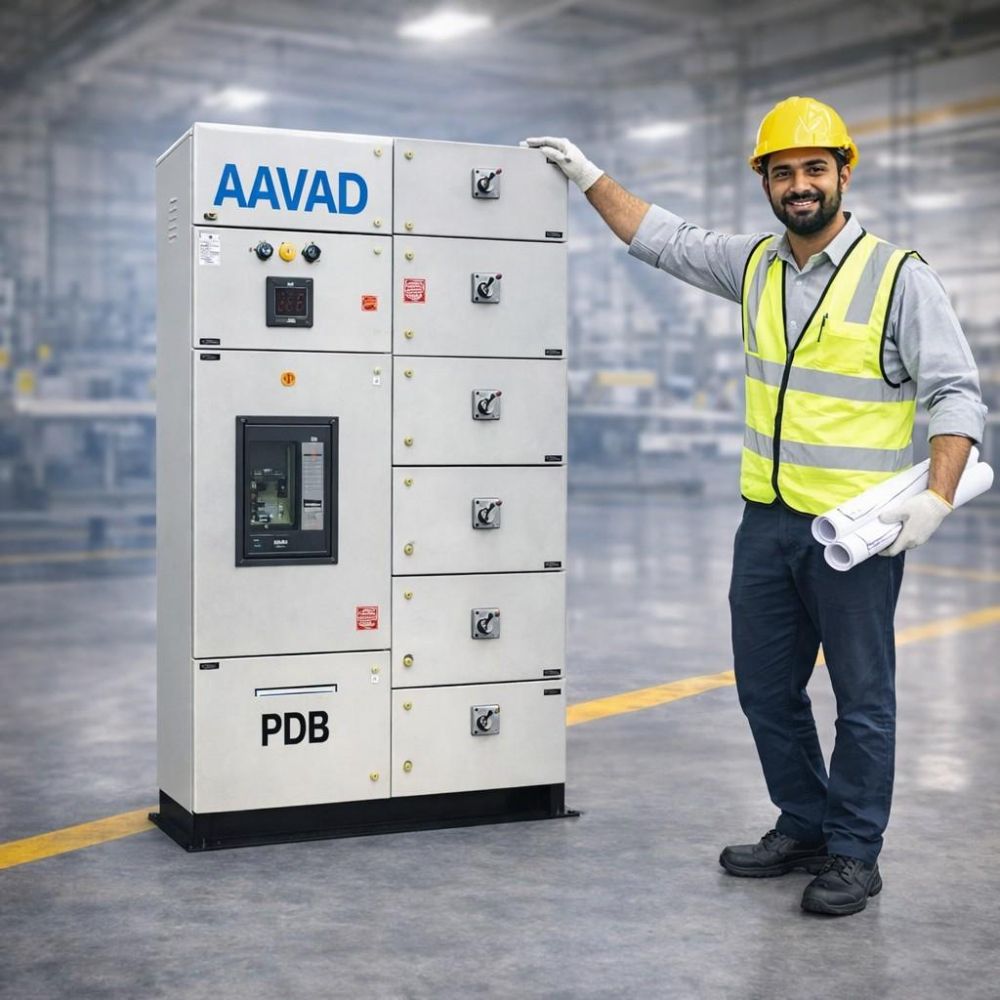

Structure of PDB Panel

AAVAD PDB Panels are manufactured with metal-clad enclosures fabricated from high-quality CRCA sheets, ensuring mechanical strength and safety.

Key construction features include:

• Air-insulated copper or aluminium busbars with high conductivity

• Heat-shrinkable PVC sleeves for insulation

• Standard phase color coding (Red, Yellow, Blue, Black/Neutral) as per IEC standards

• Fully enclosed and floor-mounted design

• Custom-built configurations based on client requirements

Difference Between LDB and PDB

• PDB (Power Distribution Board): Used for distributing electrical power to various loads and equipment.

• LDB (Lighting Distribution Board): Used specifically for lighting power distribution.

PDB Panels are commonly installed in electrical rooms and allow multiple circuit connections to be controlled and protected from a centralized location.

Why Choose AAVAD PDB Panels?

• Robust and reliable construction

• Compliance with international standards

• High safety and protection levels

• Custom-designed solutions as per application needs

• Long service life with minimal maintenance

• Trusted manufacturing quality by AAVAD Instrument Pvt. Ltd.
