Description
- Temperature controllers are used to identifying measured temperature and release output to maintain desired temperatures.
Process Controller
Process Controller

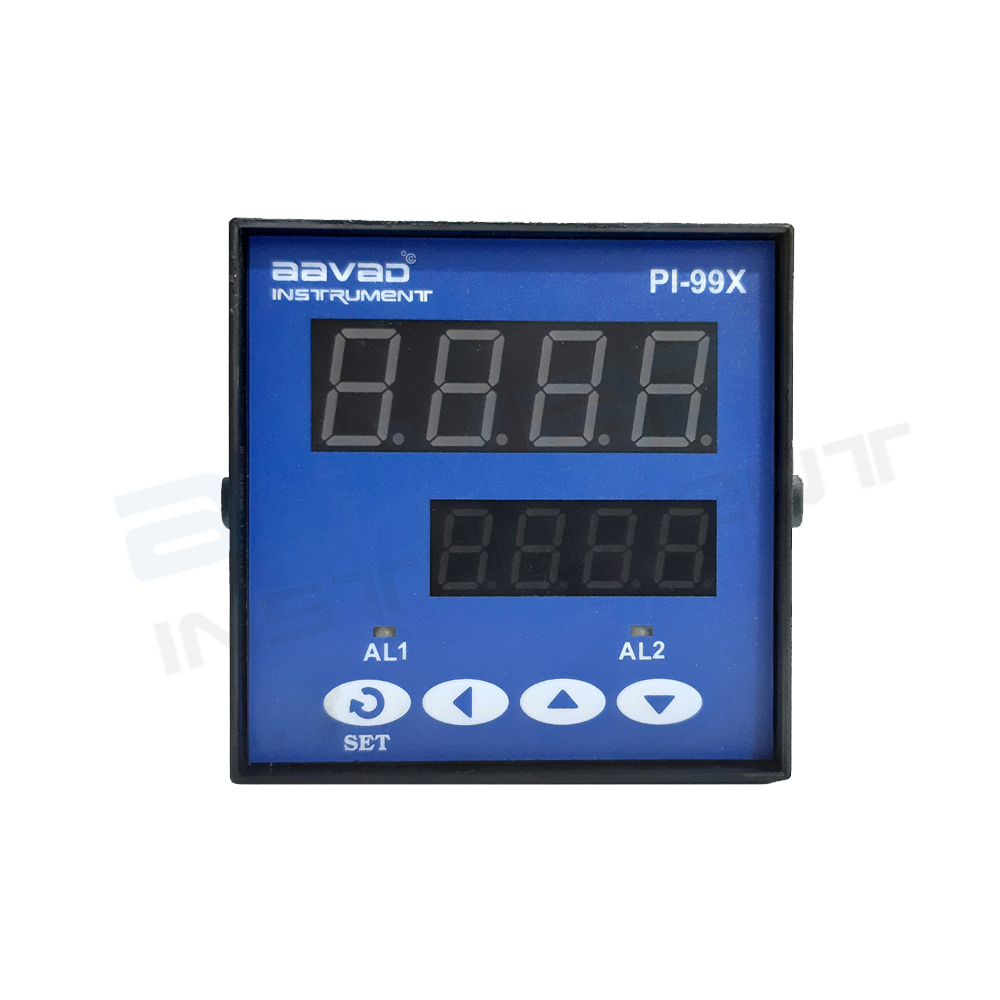

Process Controller PI-99x
Make: Aavad
Model: Pi- 99x
Size: 96 X 96 mm
Sensor input: T/C: J, K, R, S ,RTD: PT-100, 4-20mA
Resolution: T/C: 1°C & PT-100: 1°C/ 0.1°C
Sampling rate: 250msec
Accuracy: 0.3% Fs
Display: Height & Color: 0.56’’ White
No. of digits: 4 Digits single row
Led indication: Output status
Inbuild transmitter supply: 24V dc
With 4-20mA retransmission output
Output : Relay: 5a @ 250V ac/30V dc, SSR Drive: 12V dc @ 30mA
Supply voltage: 90 – 270 V ac/dc (24V dc available on request)
Ambient temperature: 0 To 50 °C
Humidity: 95% Rh (Non-Condensing)
