| Parameter | Specification |
|---|---|
| Type | K (Cr/Al) |
| Make | Aavad |
| Model | AKES |
| Configuration | Simplex |
| Temperature range | 0 To 400°C |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Cable length | 2 Meters |
| Cable type | Fiberglass/Fiberglass/SS |
| Assembly | Rotating Bayonet |
| Tip Length | 45mm |
| Tip od | 6mm |
| Bayonet cap | 1 Pin locking, od 15.5 mm |

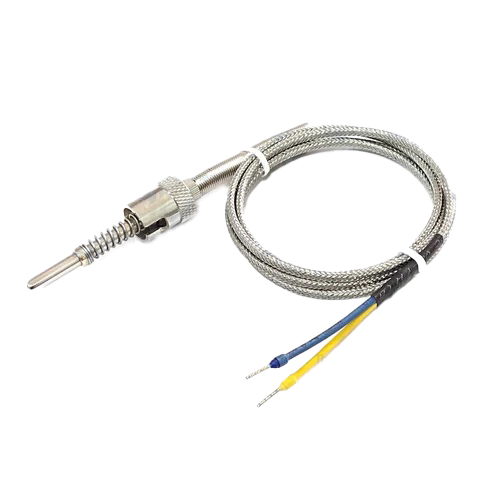

It can be said Bayonet mount or a Bayonet Fastener is a fastening mechanism that consists of a cylindrical male side with pins mounted radially, and a female receptor with L-shaped slot(s) which matches the pins and with spring(s) that forces the parts to stick together
Quick push-and-twist locking mechanism
Secure and vibration-resistant connection
Spring-loaded design ensures constant contact pressure
Easy installation and removal without tools
Reduces downtime during sensor replacement
Reliable performance in industrial environments
Commonly used with thermocouples and RTD sensors
Ideal for applications requiring frequent disconnection
Plastic extrusion machines
Injection molding machines
Extruder barrels and heater bands
Hot runner and nozzle temperature measurement
Die casting machinery
Packaging and polymer processing equipment
Industrial heaters and heating elements
Machinery requiring quick sensor replacement
OEM equipment with frequent maintenance cycles
High-vibration industrial environments
