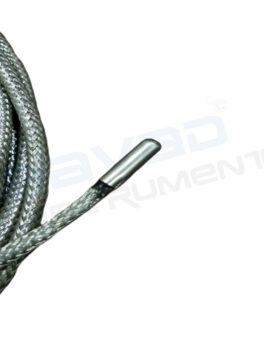

RTD Sensor Tip Bayonet

Adjustable Bayonet SensorBearing Temperature Sensor

Category: Wire Type RTD & Thermocouple Sensor Manufacturer

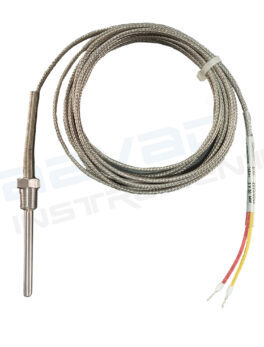

Bayonet RTD Sensor

Parameter	Specification
Assembly	Bayonet
Type	PT100
Make	Aavad
Accuracy	Class A
Configuration	Simplex
No. Of Wire	3 Wire
Temperature Range	-50 to 250 Degree C
Material Of Construction	SS 316
Wire Insulation	Teflon/Teflon/SS
Wire Length	2 Meter
Adapter	1/4” BSP
Tip dia.	5 mm
Tip length	50 mm
Bayonet Cap	Od 14.10 mm, ID 12.00 mm, 1 Pin Locking

Please select a valid form

Description
2D Drawing

Description

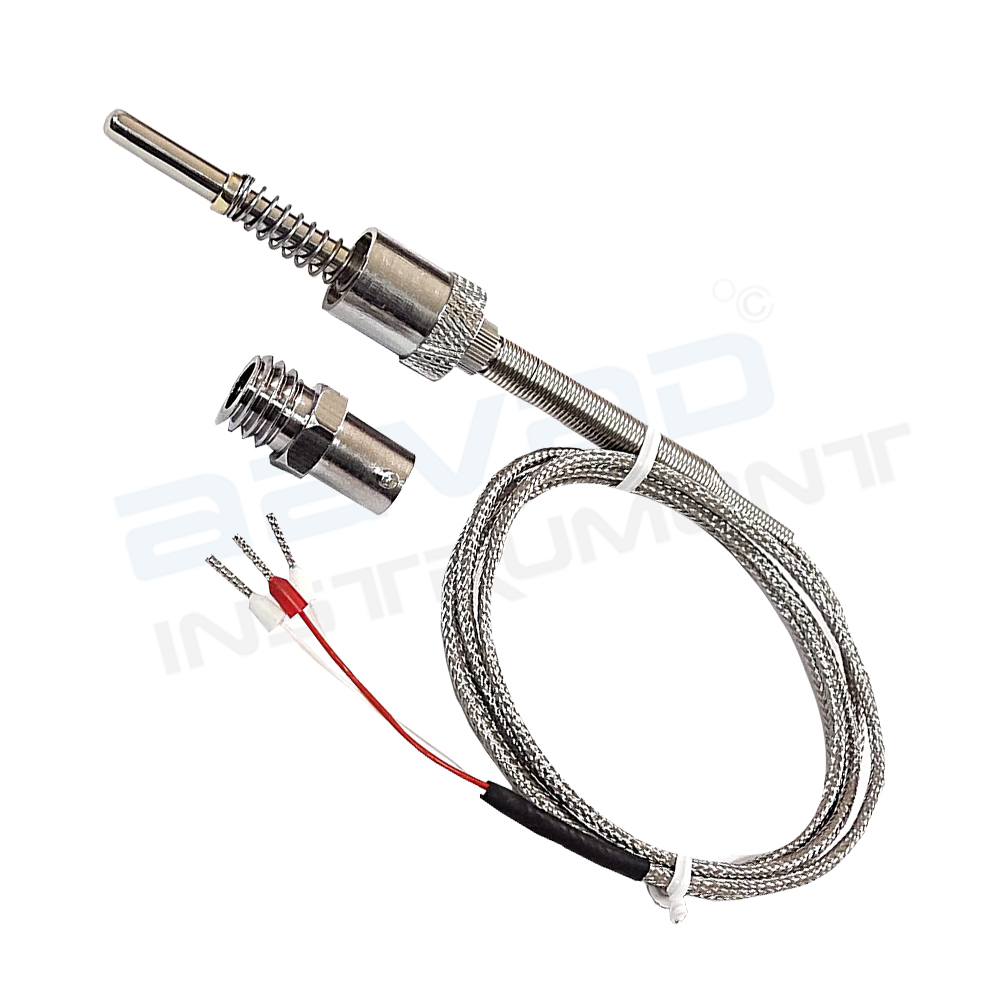

Adjustable bayonet resistance thermometer for plastic extruders and extrusion machinery.

Spring loaded bayonet resistance thermometers have an adjustable threaded spring which is 60mm long with either a single slot 11.5mm I.D fixing cap or a 12.5mm I.D double slot fixing cap to ensure a positive contact within the machine recess.

The 3 wire Pt100 RTD is available in Class A or B and housed in a 4.7mm (3/16”) or 6mm diameter stainless steel tip with a 2 metre Teflon/Teflon/SS lead wire.
