| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APWS |
| Configuration | Simplex |
| No. of wire | 3 Wire |
| Accuracy | Class A |
| Temperature range | -50 To 300℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Protection head | Die-cast aluminum head with threaded cap & chain |
| Head protection class | Ip-65 |
| Head cable entry connection | ¾“ Et |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 6 mm |
| Teflon sleeve od | 8 mm |
| Length | 250 mm |

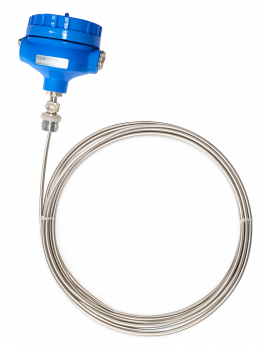

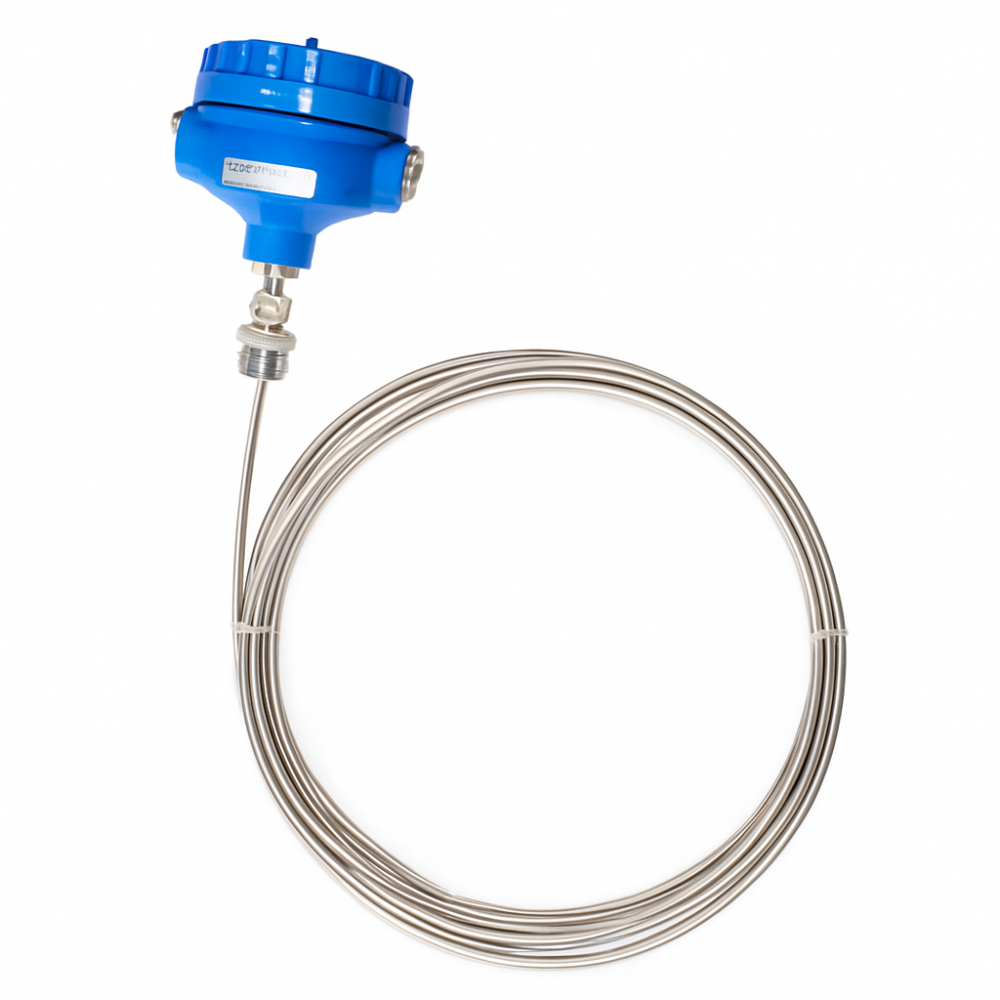

Aavad Insrument Specifically designed to measure temperatures in the highly corrosive environments of acids and alkalis. Capable of measuring temperatures of acids and alkalis upto 300°C.
Teflon sleeve protects the sheath from corrosion in highly concentrated acids and alkalies. Since the assembly is made of bendable sheath and insulated using flexible sleeve, it can be bent at user level according to the mounting requirements.
Resistant to highly corrosive acids and alkalis
Teflon (PTFE) sleeve provides superior corrosion protection
Capable of temperature measurement up to 300°C
Bendable sheath allows flexible installation and custom mounting
Durable construction designed for harsh chemical environments
Chemical and petrochemical industries
Acid and alkali storage tanks and pipelines
Pharmaceutical and process industries handling corrosive media
Industrial reactors and chemical processing units
Fertilizer, dye, and specialty chemical plants
