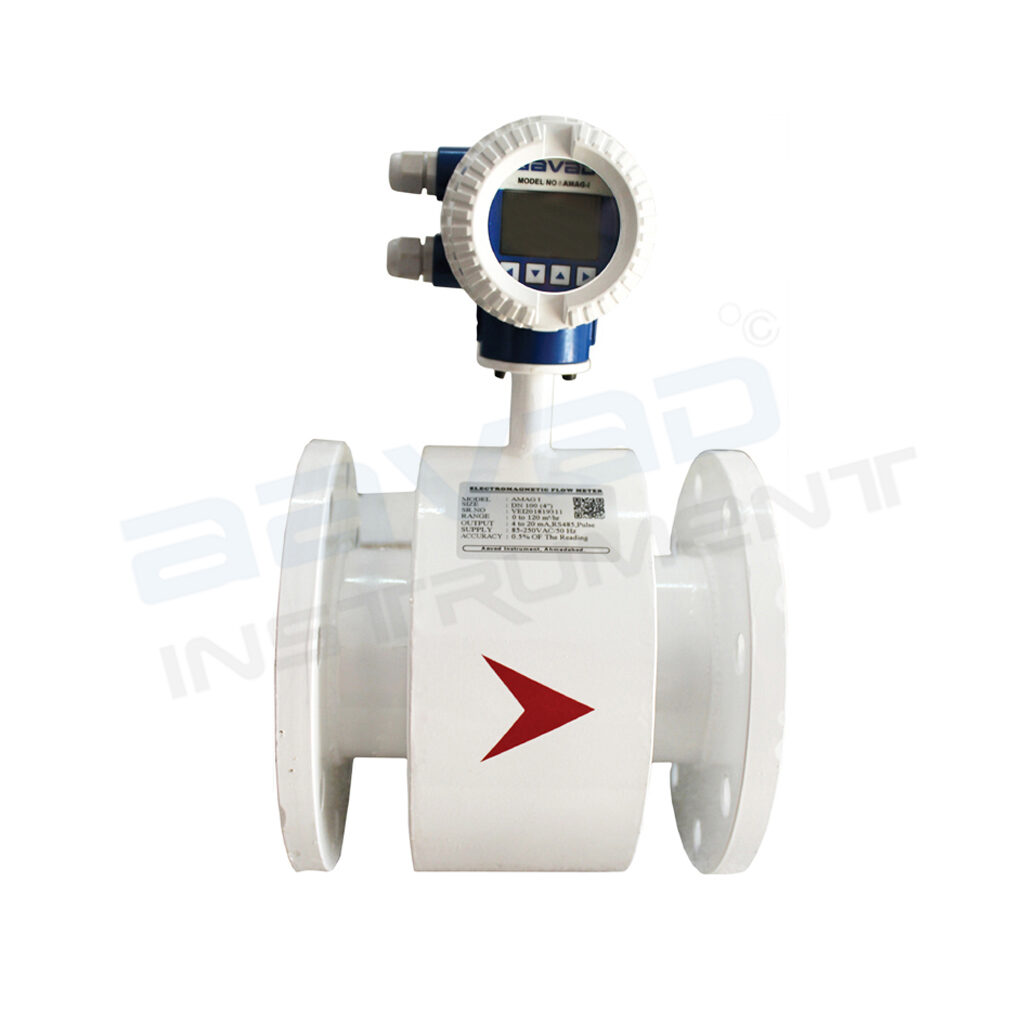

Tamper Proof Electromagnetic Flow Meter With Telemetry System

Electromagnetic Flow Meter

Parameter	Specification
Make	Aavad
Model	AMAG – I
Service	Pls specify
Conductivity	≥ 10 ΜS/Cm
Output	4 ‐ 20 Ma isolated, Rs – 485, Pulse
Display	LCD 16×4 Line 9 digit totalized flow
Accuracy	+ / ‐ 0.5 % of reading
Repeatability	+ / ‐ 1%
Process temperature	0 °C ‐ 150 °C
Process pressure	Max: 10 Kg/Cm2
Internal	PTFE lining
Electrode moc	SS 316
Power supply	230V ac
Response time	0.3 Sec
Process connection	Asa 150 flanged MS
Operating temperature	55°C
Electronics housing	Die-Cast aluminum, Ip 65
Empty pipe detection	Yes
Backlight LCD	Yes
Velocity	0.2 To 10 M/S
Measuring unit	Selectable Kg/H,M3/H,L/H,L/M,L/S,Kg/M,Kg/S

Aavad Instrument Private Limited offers a digital flow meter with a telemetry system as per the latest Central Groundwater Authority (CGWA) guidelines. Also, this digital flow meter with a telemetry system is easy to install and user-friendly. It provides an IoT platform for water meters that is suitable for data acquisition from any remote location. Also, its cloud platform has a real-time dashboard that allows viewing all analytical parameters as per CGWA guidelines. Alerts or notifications during parameter exceedance will be received through email and SMS.

LINE SIZE	15MM, 19MM, 25MM, 40MM, 50MM, 65MM, 80MM, 100MM, 125MM, 150MM, 200MM, 250MM

Fully CGWA-compliant digital water flow monitoring solution
Real-time data transmission to CGWA
Un-tampered data integrity using a secure cloud architecture
IoT-enabled telemetry system for remote data acquisition from any location
Cloud-based real-time dashboard showing all analytical parameters as per CGWA guidelines
Automatic data logging with access to historical records
Email & SMS alerts/notifications during parameter exceedance
Secure user access and authentication
Easy installation and simple operation
Reliable performance for continuous, long-term monitoring
