Wika Pressure Transmitters S-10

Wika Pressure Transmitters S-10

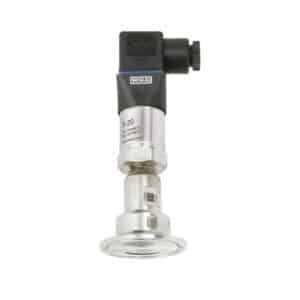

Pressure Transmitter

Model: S-10

Make: Wika

Output: 4-20mA

Wiring: 2-Wire

Power Supply: 14-30 VDC

Accuracy: 0.5% of BSFL

Zero Adjustment: +/- 10% adjustment

Span Adjustment: +/- 10% adjustment

Electrical Connector: Plug as per DIN 43650

Process Connection: 1/4″ BSP (M)

Body & Wetted parts: SS 316

Medium Temperature: -30…+100°C

Description

The field-proven model S-10 pressure transmitter (pressure sensor) is the all-rounder for pressure measurement in industrial environments. Compactly built, it can be integrated in to a wide range of machine designs. The many measuring ranges, and special measuring ranges, contribute to its universal applicability.

Data Sheet_PE 81.01

Download
