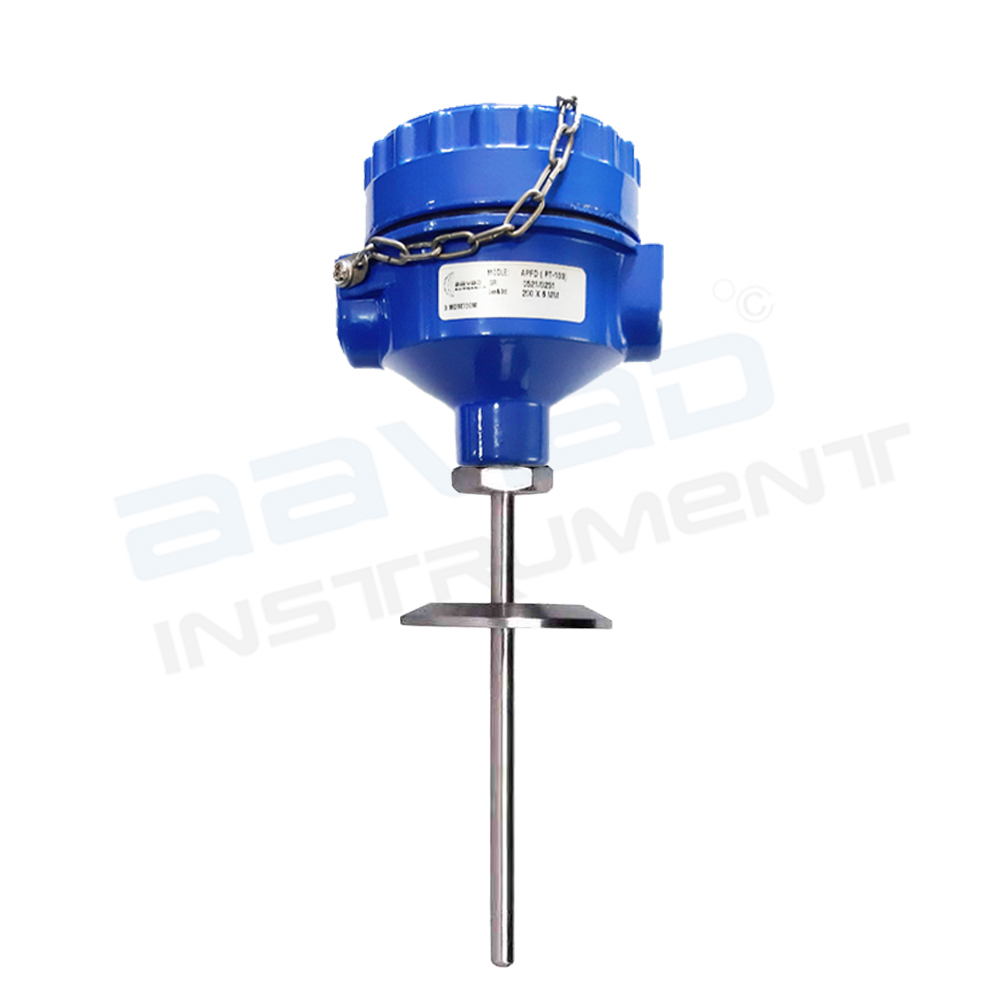

Flameproof Sanitary Rtd

Flameproof Sanitary Rtd

SKU: APWS-TRI-2 Category:

Type: PT-100
Make: Aavad
Model: APFS-Tri
Configuration: Simplex

No. of wire: 3 wire

Temperature range: -50 to 400 Deg. C

Material of construction: SS316

Protection head: Die-cast aluminum head with cap and chain

Protection class: IP67

Cable entry: Single

Cable entry size: 1/2″ (F) NPT
Process connection: 2 ” Triclover
Od: 6 mm
Total length below head: 300 mm
Length below tri-clover: 150 mm



Description

  • Sanitary RTD sensors are ideal for food, dairy, beverage, pharmaceuticals and chemical process. With a choice of process connections, cable options, and other customisations, we have something for every application here! The RTD sensor’s 2, 3 or 4-wire platinum element can be constructed in simplex or duplex assembly. The RTDs can measure temperatures between -50 and 250°C.



APFS-Tri_6x300

Download
