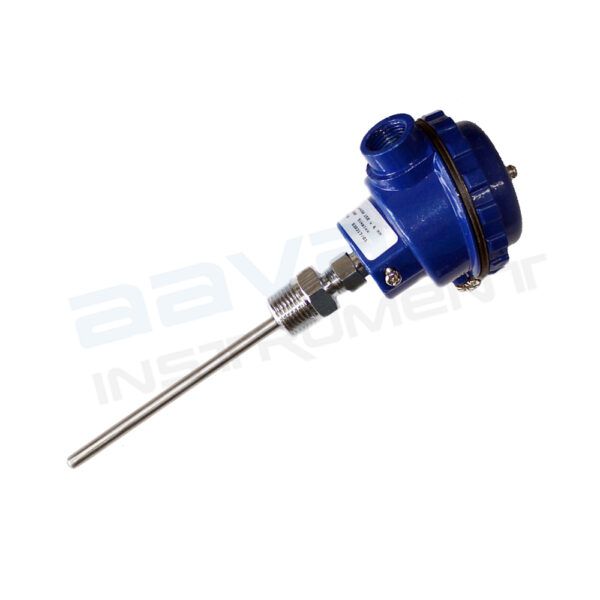

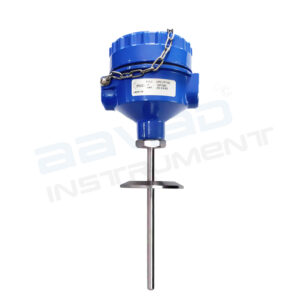

Type: PT-100 Make: Aavad Model: APWS Configuration: Simplex Accuracy: Class A Temperature range: -50 To 400℃ Material of construction: SS 316 Insulation: Compacted MgO insulation Process connection: BSP Process connection size: 1/2 ” (M) adjustable Protection head: Die-Cast aluminum head with threaded cap & chain
Head protection class: IP-65

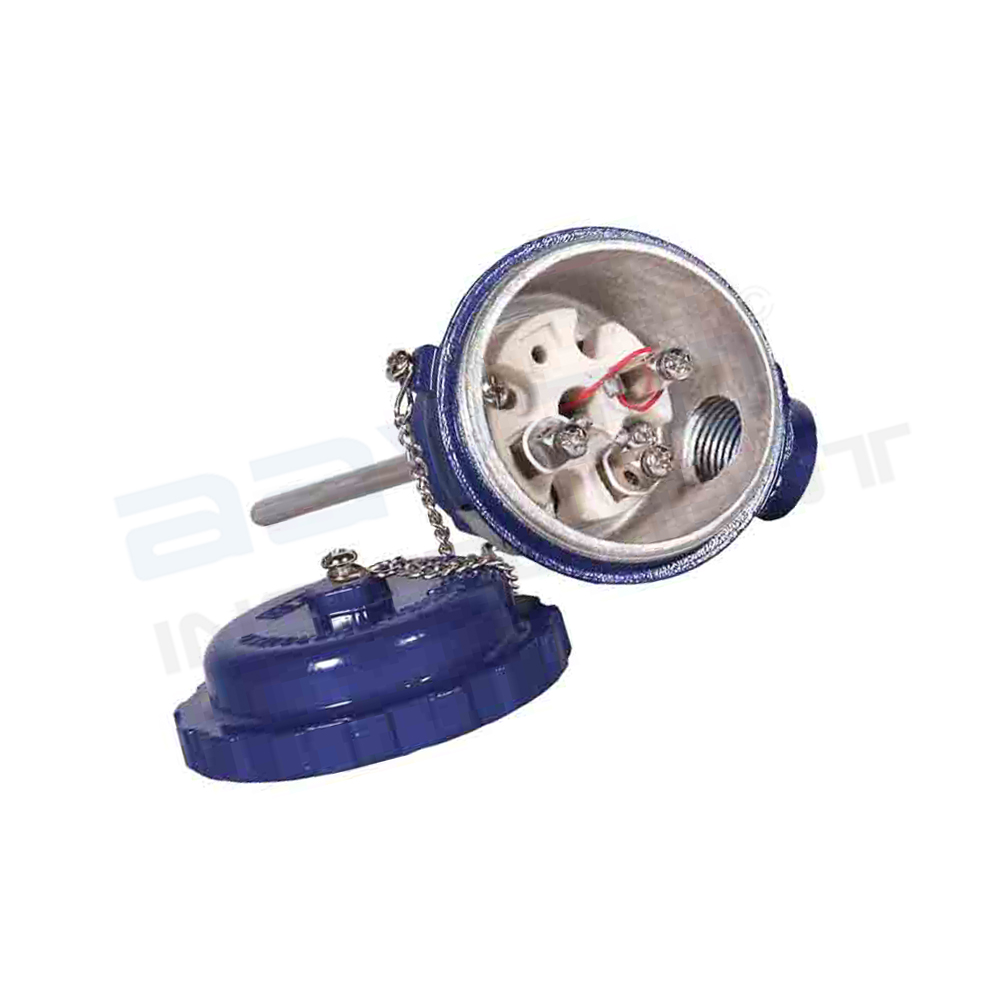

Head cable entry connection: ¾ “Et No. of cable entry: Single Terminal block: Nickel-plated ceramic terminal block Od: 6 mm
The sensor type, Pt100, indicates two important pieces of information about the sensor. The first part, Pt, is the chemical symbol for Platinum and this shows that the sensor is Platinum-based. The second part, 100, relates to the resistance of the device at 0°C. In this case 100Ω. There are a number of variations on this theme. There are other materials that can be used such as Nickel (Ni) and Copper (Cu) and different resistance values such as 50Ω, 500Ω and 1000Ω. This gives the possibility of sensors being identified as follows: Cu100, Ni120, Pt1000.
