Magnetic Flowmeter As Per CGWA Compliance

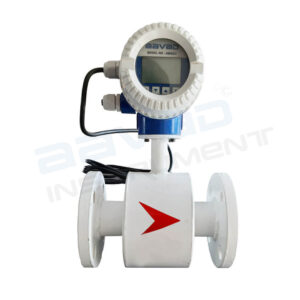

Electromagnetic Flow Meter

Parameter	Specification
Make	Aavad
Model	AMAG – R
Service	Pls specify
Conductivity	≥ 10 Μs/Cm
Output	4 ‐ 20mA Isolated, Rs – 485, Pulse
Display	Lcd 16×4 line with 5 meter cable 9 digit totalized flow
Accuracy	+ / ‐ 0.5 % of reading
Repeatability	+ / ‐ 1%
Process temperature	0°C ‐ 150℃
Process pressure	Max: 10 Kg/cm2
Flow tube body	SS 304
Internal	PTFE Lining
Electrode moc	SS 316L
Power supply	230Vac
Response time	0.3 Sec
Process connection	Asa 150 flanged MS
Operating temperature	55℃
Electronics housing	Die cast aluminum, IP 65
Empty pipe detection	Yes
Back light lcd	Yes
Velocity	0.2 to 10 m/s
Measuring unit	Selectable Kg/H,M3/H,L/H,L/M,L/S,Kg/M,Kg/S

Description

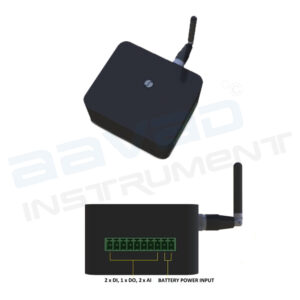

Aavad Instrument offers a Digital Flow Meter with Telemetry System as per the latest Central Groundwater Authority(CGWA) Guidelines. Also, this Digital Flow Meter with a Telemetry system is easy to install and user-friendly. It provides an IoT platform for water meters which is suitable for data acquisition from any remote location. Also, its Cloud platform having Real-Time Dashboard that allows viewing all analytical parameters as per CGWA guidelines. Alerts or Notifications during parameter excedance will be received through Email and SMS.
