Description
RTD thermowell is used to protect temperature sensors used to monitor industrial processes while permitting accurate measurement. A thermowell consists of a tube closed at one end and mounted in the process stream.

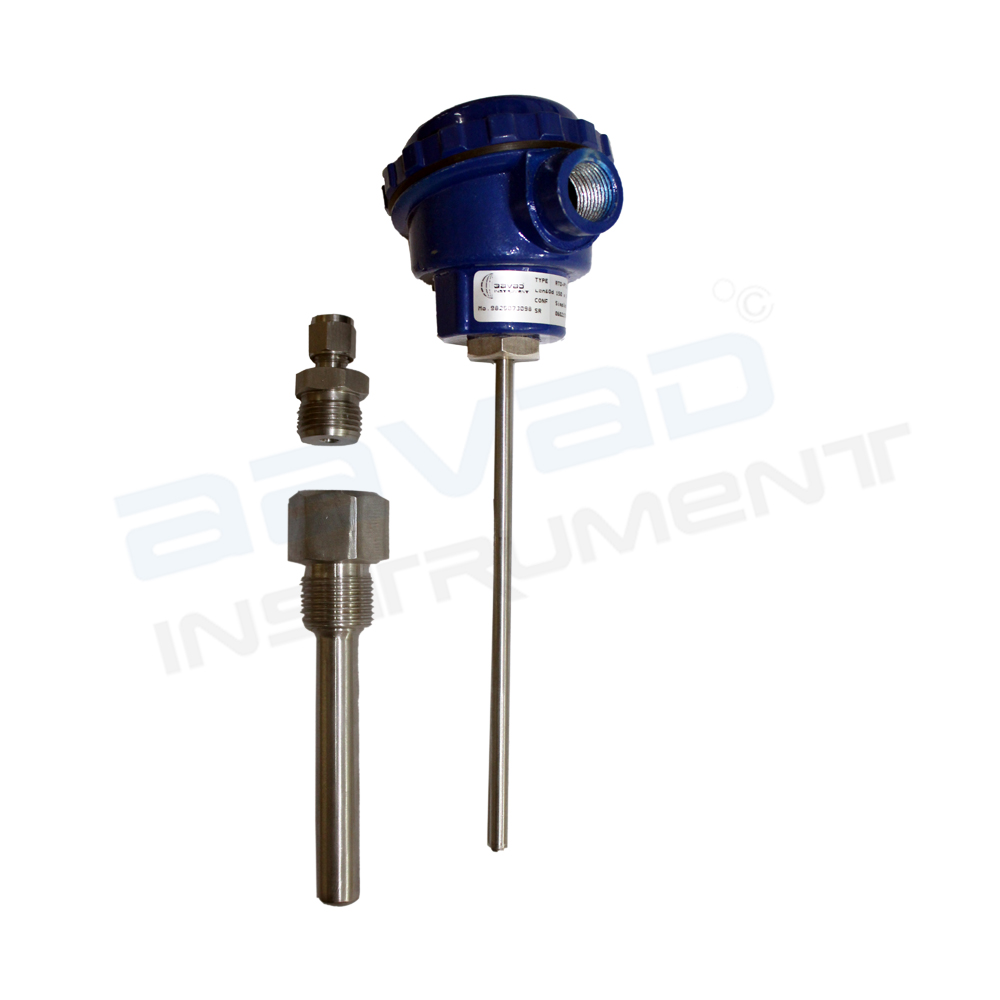

RTD Sensor With Thermowell
RTD Sensor With Thermowell

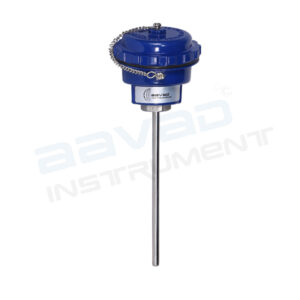

RTD Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APWS |
| Configuration | Simplex |
| Accuracy | Class A |
| Temperature range | -50 To 400℃ |
| Material of construction | SS 316 |
| Process connection | BSP |
| Process connection size | 1/2” (M) Adjustable |
| Protection head | Die-cast aluminum head with threaded cap & chain |
| Head protection class | IP-65 |
| Head cable entry connection | ¾ “Et |
| No. of cable entry | Single |
| Terminal block | Nickel-plated ceramic terminal block |
| Od | 6 mm |
| Length | 250 mm |
| Make | Aavad |
| Model | Tw-15×7 |
| Od | 15 mm |
| Id | 7 mm |
| Moc | SS 316 |
| U Length | 200 mm |
| Process connection | 1/2″ Npt (M) |
| Instrument connection | 1/2″ Npt (F) |
Key Features
Protects RTD sensors from pressure, flow, corrosion, and harsh media
Ensures accurate temperature measurement without exposing the sensor to the process
Allows sensor removal or replacement without disturbing the process line
Available in various materials (SS304, SS316, Alloy, etc.) for different industrial conditions
Designed for high mechanical strength and long service life
Applications
Industrial process monitoring in chemical and petrochemical plants
Power plants, boilers, and steam lines
Oil & gas pipelines and refineries
Food, pharma, and hygienic process systems
HVAC, heating, and general mechanical engineering applications
