Temperature Controller

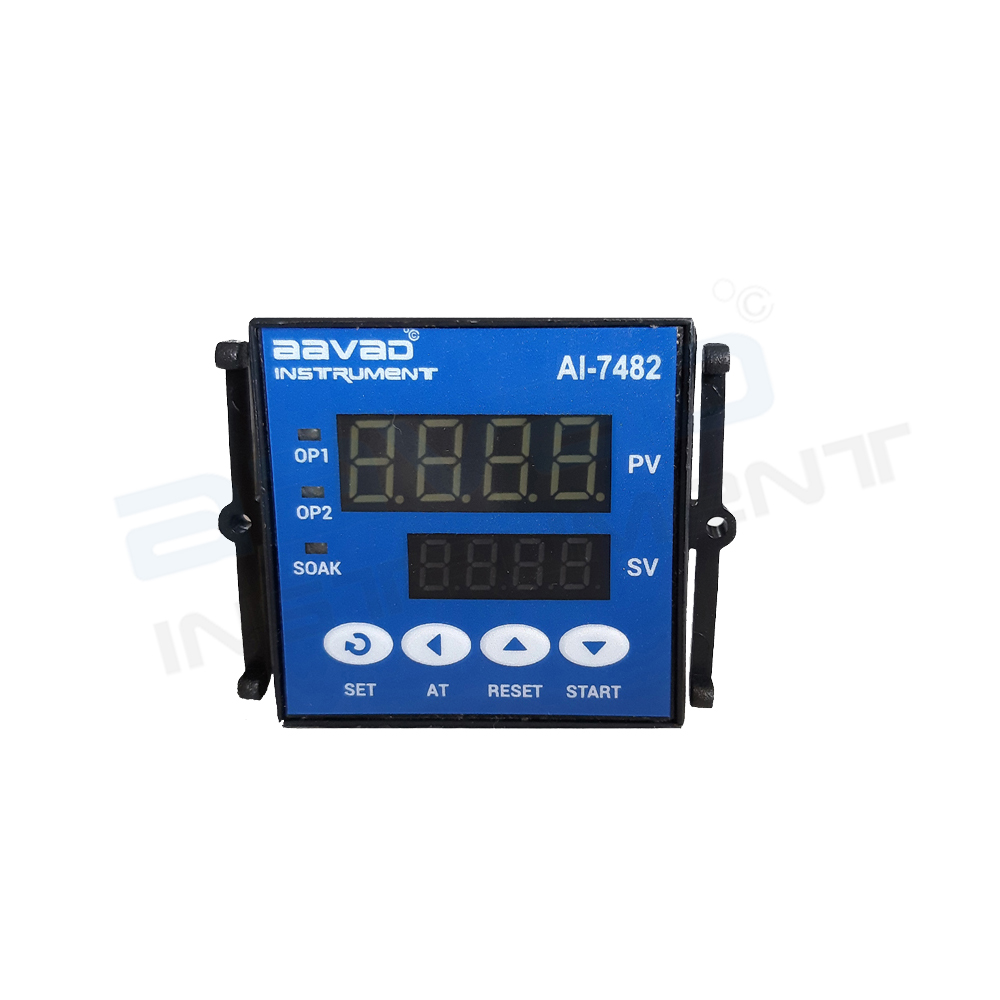

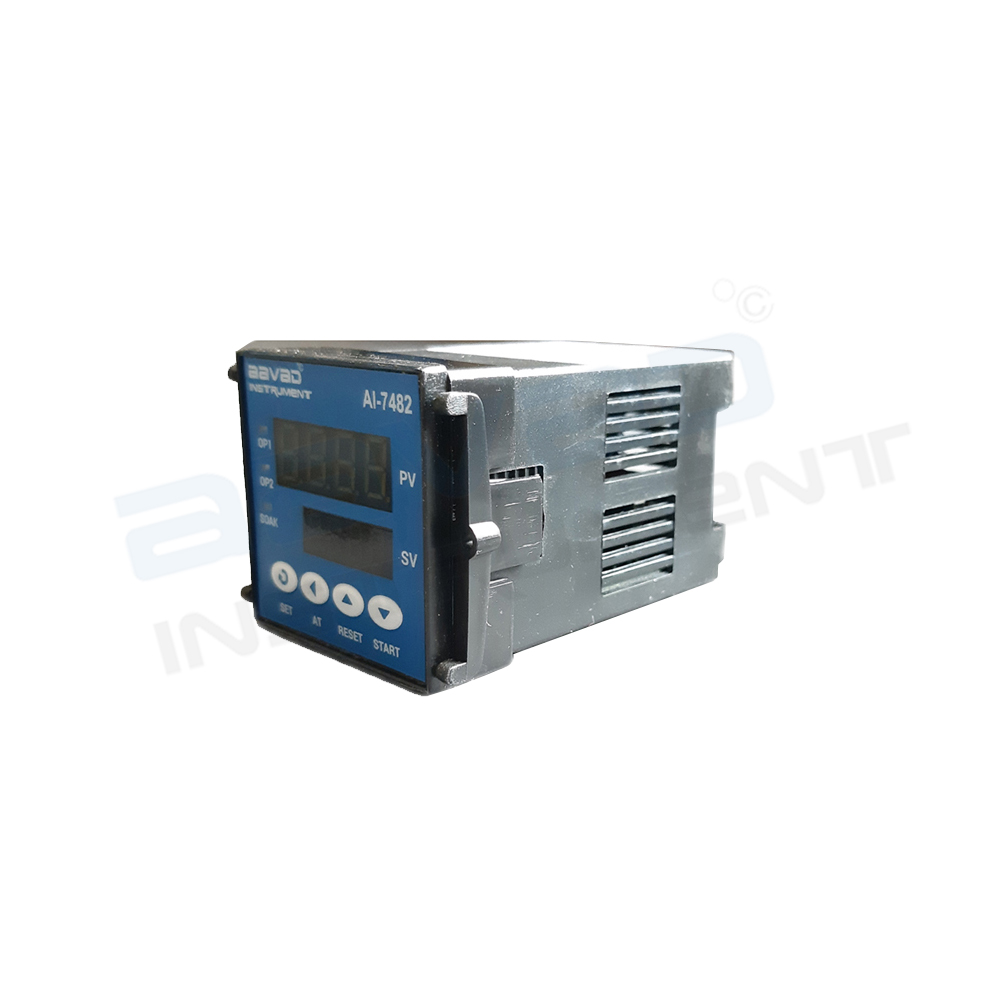

Temperature Controller Parameter Specification Make Aavad Model AI-7482 Input RTD / Thermocouple Size 48×48 mm Resolution T/C: 1°C & Pt-100: 1°C/ 0.1°C Sampling rate 250 msec Accuracy 0.3% Fs No. of display Double Display Height & Color: 0.56’’ White No. of digits 4 digits single row Led indication Output status No. of output 2 Output 1 Relay/SSR (selectable) Output 2 Relay Supply voltage 90 – 270V ac/ dc (24V dc available on request) Ambient temperature 0 To 50°C Humidity 95% Rh (Non-Condensing) Selectable sensor input (t/c & rtd) Programmable control action pid control/on-off Programmable input signal conditioning (digital filter & zero offset) Programmable lower and higher setpoint limit Program lock function (to prevent unauthorized tampering) Selectable control output (relay/ssr drive)
View More Details
Get a Quote Please select a valid form
Description A controller in a temperature control system will accept a temperature sensor such as a thermocouple or RTD as input and compare the actual temperature to the desired control temperature, or setpoint. It will then provide an output to a control element.
