Description
- This RTD sensor widely used in industries where we require protection for termination of RTD sensor. Mostly used in chemical as well as gas temperature measurement. Can be a useful vibration application.

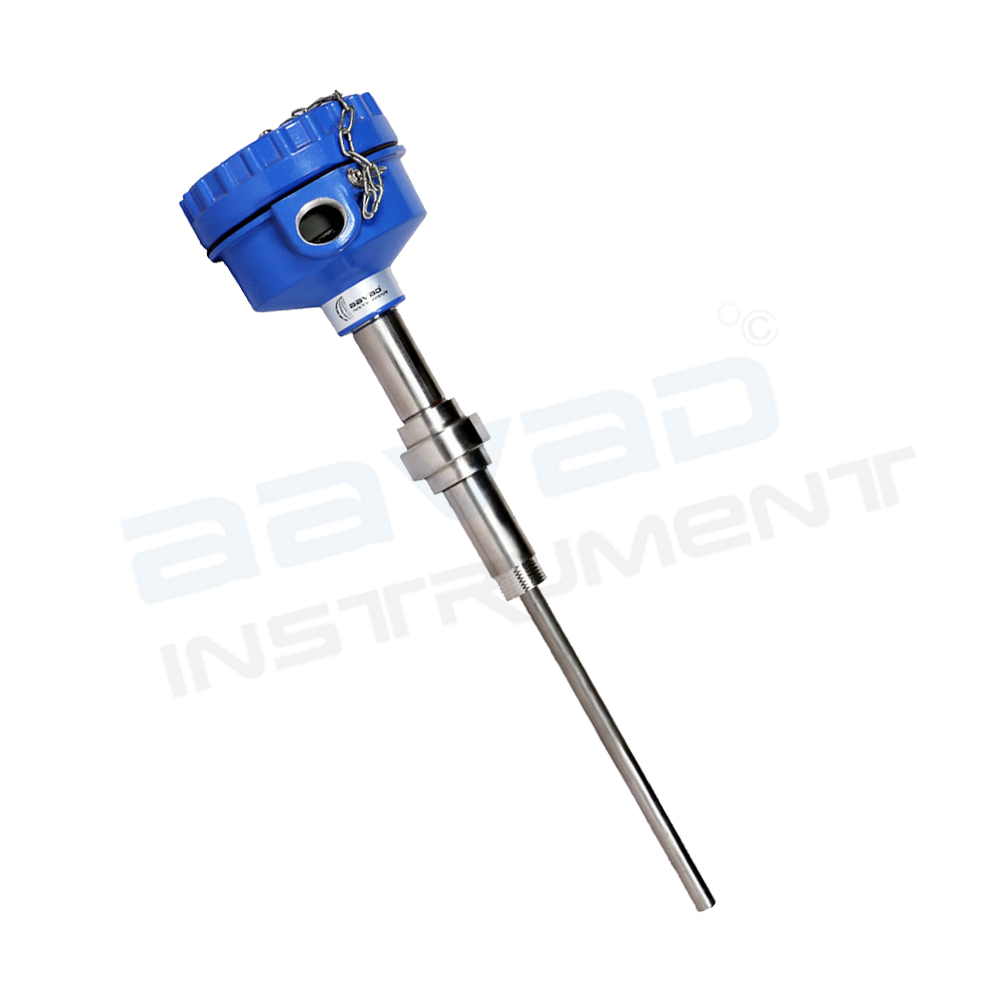

RTD with N-U-N Connection
RTD with N-U-N Connection
RTD PT-100 Sensor
| Parameter | Specification |
|---|---|
| Type | PT-100 |
| Make | Aavad |
| Model | APFS |
| Configuration | Simplex |
| Accuracy | Class A |
| Temperature range | -50 To 400℃ |
| Material of construction | SS 316 |
| Insulation | Compacted MgO insulation |
| Process connection | Nipple Union Nipple |
| Nipple Union Nipple length | 150 mm |

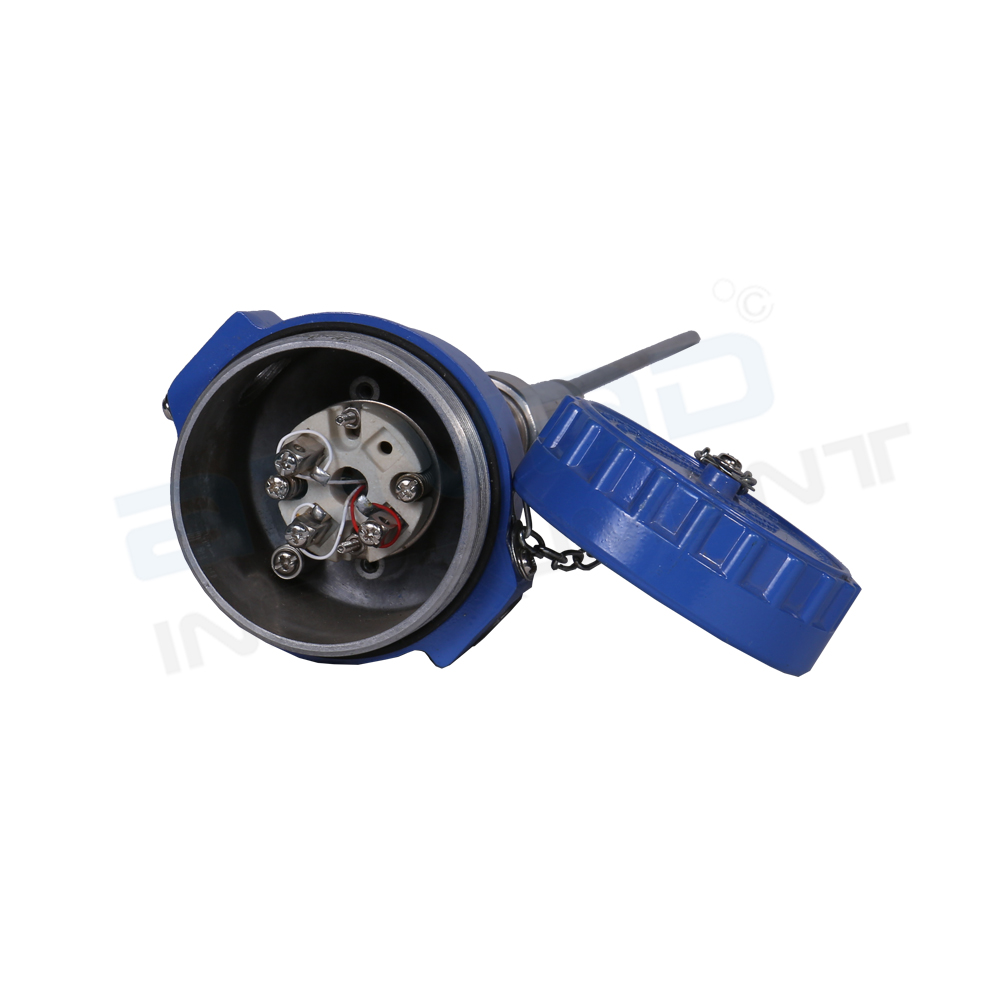

| Protection head | Die-cast aluminum flameproof head with threaded cap & chain |
| Head protection class | IP-67 |
| Head cable entry connection | 1/2 " Npt |
| No. of cable entry | Single |
| Terminal block | Spring loaded nickel plated ceramic terminal block |
| Od | 6 mm |
Additional information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 40 × 15 × 15 cm |
| Configuration | 2 WIRE, 3 WIRE, 4 WIRE |
Key Features
Protected termination for reliable and safe operation
Suitable for harsh chemical and gas measurement environments
Strong resistance to vibration and mechanical stress
High accuracy and stable temperature measurement
Durable construction for long service life
Applications
Chemical processing industries
Gas temperature measurement in pipelines and systems
Industrial machinery with vibration
Petrochemical and refinery applications
General process monitoring and control
